Compile-time strided layout with optional permutation. More...

#include <strided_layout_constexpr.h>

Public Types
using	PadPolicyType = PadPolicy

Static Public Member Functions
static FORCE_INLINE constexpr my_size_t	num_dims () noexcept
	Get number of dimensions.

static FORCE_INLINE constexpr my_size_t	perm_array (my_size_t i) TESSERACT_CONDITIONAL_NOEXCEPT
	Get permutation at dimension i.

static FORCE_INLINE constexpr my_size_t	inverse_perm_array (my_size_t i) TESSERACT_CONDITIONAL_NOEXCEPT
	Get inverse permutation at dimension i.

static FORCE_INLINE constexpr my_size_t	logical_dim (my_size_t i) TESSERACT_CONDITIONAL_NOEXCEPT
	Get logical dimension at index i (with permutation applied).

static FORCE_INLINE constexpr my_size_t	base_stride (my_size_t i) TESSERACT_CONDITIONAL_NOEXCEPT
	Get base stride at dimension i (unpermuted, for physical decomposition).

static FORCE_INLINE constexpr my_size_t	stride (my_size_t i) TESSERACT_CONDITIONAL_NOEXCEPT
	Get physical stride at dimension i (with permutation applied).

static FORCE_INLINE constexpr my_size_t	logical_stride (my_size_t i) TESSERACT_CONDITIONAL_NOEXCEPT
	Get logical stride at dimension i (for flat index decomposition).

static FORCE_INLINE constexpr my_size_t	logical_flat_to_physical_flat (my_size_t logical_flat) TESSERACT_CONDITIONAL_NOEXCEPT

static FORCE_INLINE constexpr bool	is_logical_index_in_bounds (const my_size_t(&indices)[NumDims]) noexcept
	Check if logical multi-index is in bounds.

static FORCE_INLINE constexpr my_size_t	logical_coords_to_physical_flat (const my_size_t(&indices)[NumDims]) TESSERACT_CONDITIONAL_NOEXCEPT
	Logical coordinates (Array multi-index) to physical flat index (bounds-checked).

template<typename... Indices>
static FORCE_INLINE constexpr my_size_t	logical_coords_to_physical_flat (Indices... indices) TESSERACT_CONDITIONAL_NOEXCEPT
	Logical coordinates (variadic multi-index) to physical flat index (bounds-checked).

static FORCE_INLINE constexpr void	logical_flat_to_logical_coords (my_size_t logical_flat, my_size_t(&indices)[NumDims]) TESSERACT_CONDITIONAL_NOEXCEPT
	Logical flat index to logical coordinates.

static FORCE_INLINE constexpr void	physical_flat_to_physical_coords (my_size_t physical_flat, my_size_t(&indices)[NumDims]) TESSERACT_CONDITIONAL_NOEXCEPT
	Physical flat index to physical coordinates.

static FORCE_INLINE constexpr void	physical_flat_to_logical_coords (my_size_t physical_flat, my_size_t(&indices)[NumDims]) TESSERACT_CONDITIONAL_NOEXCEPT
	Physical flat index to logical coordinates.

Static Public Attributes
static constexpr my_size_t	NumDims = PadPolicy::NumDims

static constexpr my_size_t	LogicalSize = PadPolicy::LogicalSize

static constexpr my_size_t	PhysicalSize = PadPolicy::PhysicalSize

static constexpr bool	IsPermProvided = sizeof...(Perm) > 0

Detailed Description

template<typename PadPolicy, my_size_t... Perm>
struct StridedLayoutConstExpr< PadPolicy, Perm >

Compile-time strided layout with optional permutation.

Template Parameters

PadPolicy	Padding PadPolicy (e.g., SimdPaddingPadPolicy<T, Dims...>)
Perm	Optional permutation indices (empty = identity)

All computations happen at compile-time. Zero runtime overhead.

Usage: StridedLayoutConstExpr<PadPolicy> // no permutation (identity) StridedLayoutConstExpr<PadPolicy, 1, 0> // transposed StridedLayoutConstExpr<PadPolicy, 2, 0, 1> // custom permutation

Member Typedef Documentation

◆ PadPolicyType

template<typename PadPolicy , my_size_t... Perm>

using StridedLayoutConstExpr< PadPolicy, Perm >::PadPolicyType = PadPolicy

Member Function Documentation

◆ base_stride()

template<typename PadPolicy , my_size_t... Perm>

static FORCE_INLINE constexpr my_size_t StridedLayoutConstExpr< PadPolicy, Perm >::base_stride ( my_size_t i )

inlinestaticconstexpr

Get base stride at dimension i (unpermuted, for physical decomposition).

Parameters

i

Returns: constexpr my_size_t

Exceptions

if	i >= NumDims

Here is the call graph for this function:

◆ inverse_perm_array()

template<typename PadPolicy , my_size_t... Perm>

static FORCE_INLINE constexpr my_size_t StridedLayoutConstExpr< PadPolicy, Perm >::inverse_perm_array ( my_size_t i )

inlinestaticconstexpr

Get inverse permutation at dimension i.

Parameters

i

Returns: constexpr my_size_t

Exceptions

if	i >= NumDims

Here is the call graph for this function:

◆ is_logical_index_in_bounds()

template<typename PadPolicy , my_size_t... Perm>

static FORCE_INLINE constexpr bool StridedLayoutConstExpr< PadPolicy, Perm >::is_logical_index_in_bounds ( const my_size_t(&) indices[NumDims] )

inlinestaticconstexprnoexcept

Check if logical multi-index is in bounds.

Returns: constexpr bool

◆ logical_coords_to_physical_flat() [1/2]

template<typename PadPolicy , my_size_t... Perm>

static FORCE_INLINE constexpr my_size_t StridedLayoutConstExpr< PadPolicy, Perm >::logical_coords_to_physical_flat ( const my_size_t(&) indices[NumDims] )

inlinestaticconstexpr

Logical coordinates (Array multi-index) to physical flat index (bounds-checked).

Returns: constexpr my_size_t

Exceptions

if	any index is out of bounds for its logical dimension

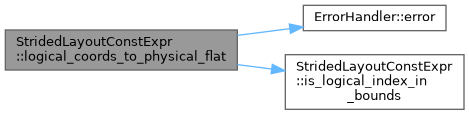

Here is the call graph for this function:

◆ logical_coords_to_physical_flat() [2/2]

template<typename PadPolicy , my_size_t... Perm>

template<typename... Indices>

static FORCE_INLINE constexpr my_size_t StridedLayoutConstExpr< PadPolicy, Perm >::logical_coords_to_physical_flat ( Indices... indices )

inlinestaticconstexpr

Logical coordinates (variadic multi-index) to physical flat index (bounds-checked).

Template Parameters

Indices

Parameters

indices

Returns: constexpr my_size_t

Exceptions

if	any index is out of bounds for its logical dimension

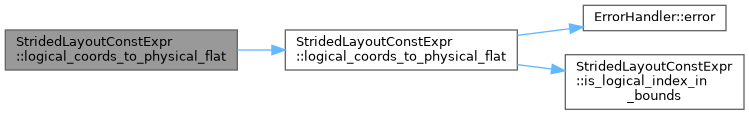

Here is the call graph for this function:

◆ logical_dim()

template<typename PadPolicy , my_size_t... Perm>

static FORCE_INLINE constexpr my_size_t StridedLayoutConstExpr< PadPolicy, Perm >::logical_dim ( my_size_t i )

inlinestaticconstexpr

Get logical dimension at index i (with permutation applied).

Parameters

i

Returns: constexpr my_size_t

Exceptions

if	i >= NumDims

Here is the call graph for this function:

◆ logical_flat_to_logical_coords()

template<typename PadPolicy , my_size_t... Perm>

static FORCE_INLINE constexpr void StridedLayoutConstExpr< PadPolicy, Perm >::logical_flat_to_logical_coords	(	my_size_t	logical_flat,
		my_size_t(&)	indices[NumDims]
	)

inlinestaticconstexpr

Logical flat index to logical coordinates.

Decomposes a flat index into multi-dimensional coordinates using LogicalStrides (row-major order in logical space).

Input must be in range [0, LogicalSize).

Example: 3x4 matrix, logical flat 7: LogicalStrides = [4, 1] 7 / 4 = 1, 7 - 4 = 3 3 / 1 = 3 → coords (1, 3)

Parameters

logical_flat	Input flat index in logical space
indices	Output parameter for multi-dimensional coordinates

Returns: constexpr void

Exceptions

if	logical_flat is out of bounds for LogicalSize

Here is the call graph for this function:

◆ logical_flat_to_physical_flat()

template<typename PadPolicy , my_size_t... Perm>

static FORCE_INLINE constexpr my_size_t StridedLayoutConstExpr< PadPolicy, Perm >::logical_flat_to_physical_flat ( my_size_t logical_flat )

inlinestaticconstexpr

Convert logical flat index to physical offset.

Uses forward iteration + subtraction to minimize divisions. Only N divisions instead of 2N with reverse + modulo.

Here is the call graph for this function:

◆ logical_stride()

template<typename PadPolicy , my_size_t... Perm>

static FORCE_INLINE constexpr my_size_t StridedLayoutConstExpr< PadPolicy, Perm >::logical_stride ( my_size_t i )

inlinestaticconstexpr

Get logical stride at dimension i (for flat index decomposition).

Parameters

i

Returns: constexpr my_size_t

Exceptions

if	i >= NumDims

Here is the call graph for this function:

◆ num_dims()

template<typename PadPolicy , my_size_t... Perm>

static FORCE_INLINE constexpr my_size_t StridedLayoutConstExpr< PadPolicy, Perm >::num_dims ( )

inlinestaticconstexprnoexcept

Get number of dimensions.

Returns: constexpr my_size_t

◆ perm_array()

template<typename PadPolicy , my_size_t... Perm>

static FORCE_INLINE constexpr my_size_t StridedLayoutConstExpr< PadPolicy, Perm >::perm_array ( my_size_t i )

inlinestaticconstexpr

Get permutation at dimension i.

Parameters

i

Returns: constexpr my_size_t

Exceptions

if	i >= NumDims

Here is the call graph for this function:

◆ physical_flat_to_logical_coords()

template<typename PadPolicy , my_size_t... Perm>

static FORCE_INLINE constexpr void StridedLayoutConstExpr< PadPolicy, Perm >::physical_flat_to_logical_coords	(	my_size_t	physical_flat,
		my_size_t(&)	indices[NumDims]
	)

inlinestaticconstexpr

Physical flat index to logical coordinates.

Decomposes a flat index into physical coordinates using BaseStrides, then applies permutation to get logical coordinates.

Input must be in range [0, PhysicalSize).

WARNING: If physical_flat is a padding location, the returned logical coords will be out-of-bounds (coord >= LogicalDims[i]).

Example: 2x3 matrix padded to 2x4, transposed [1,0], physical flat 5: BaseStrides = [4, 1], PermArray = [1, 0] Step 1 - decompose with BaseStrides: 5 / 4 = 1, 5 - 4 = 1 1 / 1 = 1 → physical coords (1, 1) Step 2 - apply permutation: logical[0] = physical[PermArray[0]] = physical[1] = 1 logical[1] = physical[PermArray[1]] = physical[0] = 1 → logical coords (1, 1)

Parameters

physical_flat
indices	Output parameter for logical multi-dimensional coordinates

Returns: constexpr void

Exceptions

if	physical_flat is out of bounds for PhysicalSize

Here is the call graph for this function:

◆ physical_flat_to_physical_coords()

template<typename PadPolicy , my_size_t... Perm>

static FORCE_INLINE constexpr void StridedLayoutConstExpr< PadPolicy, Perm >::physical_flat_to_physical_coords	(	my_size_t	physical_flat,
		my_size_t(&)	indices[NumDims]
	)

inlinestaticconstexpr

Physical flat index to physical coordinates.

Decomposes a flat index into multi-dimensional coordinates using BaseStrides (row-major order in physical memory).

Input must be in range [0, PhysicalSize).

WARNING: If physical_flat is a padding location, the returned coords will also be in the padding area.

Example: 2x3 matrix padded to 2x4, physical flat 7: BaseStrides = [4, 1] 7 / 4 = 1, 7 - 4 = 3 3 / 1 = 3 → coords (1, 3) ← column 3 is padding (LogicalDims[1] = 3)

Parameters

physical_flat
indices	Output parameter for multi-dimensional coordinates

Returns: constexpr void

Exceptions

if	physical_flat is out of bounds for PhysicalSize

Here is the call graph for this function:

◆ stride()

template<typename PadPolicy , my_size_t... Perm>

static FORCE_INLINE constexpr my_size_t StridedLayoutConstExpr< PadPolicy, Perm >::stride ( my_size_t i )

inlinestaticconstexpr

Get physical stride at dimension i (with permutation applied).

Parameters

i

Returns: constexpr my_size_t

Exceptions

if	i >= NumDims

Here is the call graph for this function:

Member Data Documentation

◆ IsPermProvided

template<typename PadPolicy , my_size_t... Perm>

constexpr bool StridedLayoutConstExpr< PadPolicy, Perm >::IsPermProvided = sizeof...(Perm) > 0

staticconstexpr

◆ LogicalSize

template<typename PadPolicy , my_size_t... Perm>

constexpr my_size_t StridedLayoutConstExpr< PadPolicy, Perm >::LogicalSize = PadPolicy::LogicalSize

staticconstexpr

◆ NumDims

template<typename PadPolicy , my_size_t... Perm>

constexpr my_size_t StridedLayoutConstExpr< PadPolicy, Perm >::NumDims = PadPolicy::NumDims

staticconstexpr

◆ PhysicalSize

template<typename PadPolicy , my_size_t... Perm>

constexpr my_size_t StridedLayoutConstExpr< PadPolicy, Perm >::PhysicalSize = PadPolicy::PhysicalSize

staticconstexpr

The documentation for this struct was generated from the following file:

core/include/fused/layouts/strided_layout_constexpr.h
