NeonDoubleIntrinsics Struct Reference

#include <neon_intrinsics.h>

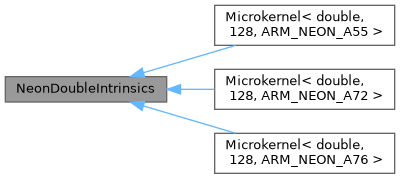

Inheritance diagram for NeonDoubleIntrinsics:
Inheritance graph
[legend]

Public Types

using VecType = float64x2_t

using ScalarType = double


Static Public Member Functions

static FORCE_INLINE VecType load (const ScalarType *ptr) noexcept

static FORCE_INLINE VecType loadu (const ScalarType *ptr) noexcept

static FORCE_INLINE void store (ScalarType *ptr, VecType val) noexcept

static FORCE_INLINE void storeu (ScalarType *ptr, VecType val) noexcept

static FORCE_INLINE VecType set1 (ScalarType scalar) noexcept

static FORCE_INLINE VecType add (VecType a, VecType b) noexcept

static FORCE_INLINE VecType add (VecType a, ScalarType b) noexcept

static FORCE_INLINE VecType mul (VecType a, VecType b) noexcept

static FORCE_INLINE VecType mul (VecType a, ScalarType b) noexcept

static FORCE_INLINE VecType sub (VecType a, VecType b) noexcept

static FORCE_INLINE VecType sub (VecType a, ScalarType b) noexcept

static FORCE_INLINE VecType sub (ScalarType a, VecType b) noexcept

static FORCE_INLINE VecType div (VecType a, VecType b) noexcept

static FORCE_INLINE VecType div (VecType a, ScalarType b) noexcept

static FORCE_INLINE VecType div (ScalarType a, VecType b) noexcept

static FORCE_INLINE VecType fmadd (VecType a, VecType b, VecType c) noexcept

static FORCE_INLINE VecType fmadd (VecType a, ScalarType b, VecType c) noexcept

static FORCE_INLINE VecType fmsub (VecType a, VecType b, VecType c) noexcept

static FORCE_INLINE VecType fmsub (VecType a, ScalarType b, VecType c) noexcept

static FORCE_INLINE VecType fnmadd (VecType a, VecType b, VecType c) noexcept

static FORCE_INLINE VecType fnmadd (VecType a, ScalarType b, VecType c) noexcept

static FORCE_INLINE VecType fnmsub (VecType a, VecType b, VecType c) noexcept

static FORCE_INLINE VecType fnmsub (VecType a, ScalarType b, VecType c) noexcept

static FORCE_INLINE VecType min (VecType a, VecType b) noexcept

static FORCE_INLINE VecType min (VecType a, ScalarType b) noexcept

static FORCE_INLINE VecType max (VecType a, VecType b) noexcept

static FORCE_INLINE VecType max (VecType a, ScalarType b) noexcept

static FORCE_INLINE VecType gather (const ScalarType *base, const my_size_t *indices) noexcept

static FORCE_INLINE void scatter (ScalarType *base, const my_size_t *indices, VecType val) noexcept

static FORCE_INLINE VecType abs (VecType v) noexcept

static FORCE_INLINE bool all_within_tolerance (VecType a, VecType b, ScalarType tol) noexcept


Static Public Attributes

static constexpr my_size_t simdWidth = 2

static constexpr my_size_t num_registers = 32


Member Typedef Documentation

◆ ScalarType

using NeonDoubleIntrinsics::ScalarType = double

◆ VecType

using NeonDoubleIntrinsics::VecType = float64x2_t

Member Function Documentation

◆ abs()

static FORCE_INLINE VecType NeonDoubleIntrinsics::abs ( VecType  v)
inlinestaticnoexcept

◆ add() [1/2]

static FORCE_INLINE VecType NeonDoubleIntrinsics::add ( VecType  a,
ScalarType  b
)
inlinestaticnoexcept
Here is the call graph for this function:

◆ add() [2/2]

static FORCE_INLINE VecType NeonDoubleIntrinsics::add ( VecType  a,
VecType  b
)
inlinestaticnoexcept

◆ all_within_tolerance()

static FORCE_INLINE bool NeonDoubleIntrinsics::all_within_tolerance ( VecType  a,
VecType  b,
ScalarType  tol
)
inlinestaticnoexcept

◆ div() [1/3]

static FORCE_INLINE VecType NeonDoubleIntrinsics::div ( ScalarType  a,
VecType  b
)
inlinestaticnoexcept
Here is the call graph for this function:

◆ div() [2/3]

static FORCE_INLINE VecType NeonDoubleIntrinsics::div ( VecType  a,
ScalarType  b
)
inlinestaticnoexcept
Here is the call graph for this function:

◆ div() [3/3]

static FORCE_INLINE VecType NeonDoubleIntrinsics::div ( VecType  a,
VecType  b
)
inlinestaticnoexcept

◆ fmadd() [1/2]

static FORCE_INLINE VecType NeonDoubleIntrinsics::fmadd ( VecType  a,
ScalarType  b,
VecType  c
)
inlinestaticnoexcept
Here is the call graph for this function:

◆ fmadd() [2/2]

static FORCE_INLINE VecType NeonDoubleIntrinsics::fmadd ( VecType  a,
VecType  b,
VecType  c
)
inlinestaticnoexcept

◆ fmsub() [1/2]

static FORCE_INLINE VecType NeonDoubleIntrinsics::fmsub ( VecType  a,
ScalarType  b,
VecType  c
)
inlinestaticnoexcept
Here is the call graph for this function:

◆ fmsub() [2/2]

static FORCE_INLINE VecType NeonDoubleIntrinsics::fmsub ( VecType  a,
VecType  b,
VecType  c
)
inlinestaticnoexcept

◆ fnmadd() [1/2]

static FORCE_INLINE VecType NeonDoubleIntrinsics::fnmadd ( VecType  a,
ScalarType  b,
VecType  c
)
inlinestaticnoexcept
Here is the call graph for this function:

◆ fnmadd() [2/2]

static FORCE_INLINE VecType NeonDoubleIntrinsics::fnmadd ( VecType  a,
VecType  b,
VecType  c
)
inlinestaticnoexcept

◆ fnmsub() [1/2]

static FORCE_INLINE VecType NeonDoubleIntrinsics::fnmsub ( VecType  a,
ScalarType  b,
VecType  c
)
inlinestaticnoexcept
Here is the call graph for this function:

◆ fnmsub() [2/2]

static FORCE_INLINE VecType NeonDoubleIntrinsics::fnmsub ( VecType  a,
VecType  b,
VecType  c
)
inlinestaticnoexcept

◆ gather()

static FORCE_INLINE VecType NeonDoubleIntrinsics::gather ( const ScalarType *  base,
const my_size_t *  indices
)
inlinestaticnoexcept

◆ load()

static FORCE_INLINE VecType NeonDoubleIntrinsics::load ( const ScalarType *  ptr)
inlinestaticnoexcept

◆ loadu()

static FORCE_INLINE VecType NeonDoubleIntrinsics::loadu ( const ScalarType *  ptr)
inlinestaticnoexcept

◆ max() [1/2]

static FORCE_INLINE VecType NeonDoubleIntrinsics::max ( VecType  a,
ScalarType  b
)
inlinestaticnoexcept
Here is the call graph for this function:

◆ max() [2/2]

static FORCE_INLINE VecType NeonDoubleIntrinsics::max ( VecType  a,
VecType  b
)
inlinestaticnoexcept

◆ min() [1/2]

static FORCE_INLINE VecType NeonDoubleIntrinsics::min ( VecType  a,
ScalarType  b
)
inlinestaticnoexcept
Here is the call graph for this function:

◆ min() [2/2]

static FORCE_INLINE VecType NeonDoubleIntrinsics::min ( VecType  a,
VecType  b
)
inlinestaticnoexcept

◆ mul() [1/2]

static FORCE_INLINE VecType NeonDoubleIntrinsics::mul ( VecType  a,
ScalarType  b
)
inlinestaticnoexcept
Here is the call graph for this function:

◆ mul() [2/2]

static FORCE_INLINE VecType NeonDoubleIntrinsics::mul ( VecType  a,
VecType  b
)
inlinestaticnoexcept

◆ scatter()

static FORCE_INLINE void NeonDoubleIntrinsics::scatter ( ScalarType *  base,
const my_size_t *  indices,
VecType  val
)
inlinestaticnoexcept

◆ set1()

static FORCE_INLINE VecType NeonDoubleIntrinsics::set1 ( ScalarType  scalar)
inlinestaticnoexcept

◆ store()

static FORCE_INLINE void NeonDoubleIntrinsics::store ( ScalarType *  ptr,
VecType  val
)
inlinestaticnoexcept

◆ storeu()

static FORCE_INLINE void NeonDoubleIntrinsics::storeu ( ScalarType *  ptr,
VecType  val
)
inlinestaticnoexcept

◆ sub() [1/3]

static FORCE_INLINE VecType NeonDoubleIntrinsics::sub ( ScalarType  a,
VecType  b
)
inlinestaticnoexcept
Here is the call graph for this function:

◆ sub() [2/3]

static FORCE_INLINE VecType NeonDoubleIntrinsics::sub ( VecType  a,
ScalarType  b
)
inlinestaticnoexcept
Here is the call graph for this function:

◆ sub() [3/3]

static FORCE_INLINE VecType NeonDoubleIntrinsics::sub ( VecType  a,
VecType  b
)
inlinestaticnoexcept

Member Data Documentation

◆ num_registers

constexpr my_size_t NeonDoubleIntrinsics::num_registers = 32
staticconstexpr

◆ simdWidth

constexpr my_size_t NeonDoubleIntrinsics::simdWidth = 2
staticconstexpr
The documentation for this struct was generated from the following file:
